How to Upgrade Gaming Laptop RAM: Step-by-Step Guide

How to upgrade gaming laptop RAM is one of the most common questions we get from gamers. The answer depends on one thing first: whether your RAM is soldered to the board or sitting in a removable slot. Get that wrong and you'll waste money on modules that won't fit.

Get it right and you can double your memory in about 20 minutes.

Most gaming laptops ship with 8GB or 16GB of DDR4 or DDR5 SO-DIMM memory. Manufacturer specifications indicate many models cap out at 32GB or 64GB total. As of 2026, that ceiling still holds for most mid-range machines.

Let's walk through the checks, the install, and the pitfalls before you open the chassis.

how to upgrade gaming laptop RAM

To upgrade gaming laptop RAM, confirm it is socketed, not soldered. Check your slot count and max capacity in the OEM spec sheet. Power down, unplug, and ground yourself before opening the chassis.

Remove the bottom panel and release the retention clips. Seat the new SO-DIMM at a 30-degree angle until it clicks. Reassemble, boot, and verify capacity in BIOS or your OS.

Why Upgrading Gaming Laptop RAM Feels So Confusing

Upgrading RAM sounds simple until you open the chassis. Three variables decide everything. Is the memory soldered or socketed?

How many slots exist? What is the maximum capacity and speed the board supports?

If your RAM is soldered, no upgrade is possible. Many thin-and-light gaming laptops use LPDDR4X or LPDDR5X soldered memory. These chips are permanently attached to the motherboard.

You cannot remove them. You can only buy a model with more memory from the factory.

If your RAM is socketed, you are in luck. Most mainstream gaming laptops use removable SO-DIMM modules. SO-DIMM stands for Small Outline Dual In-Line Memory Module.

It is the laptop-sized version of desktop RAM.

Slot count matters next. A one-slot design means single-channel operation. That limits bandwidth.

A two-slot design allows dual-channel mode, which can boost performance in memory-bound games.

OEM ceilings add another layer. Manufacturer specifications indicate many models top out at 32GB or 64GB total. Dropping in a 64GB kit on a 32GB-max board will not work.

Speed and generation compatibility close the loop. DDR4 and DDR5 are not interchangeable. A DDR4 board will not accept DDR5 modules, and vice versa.

Even within one generation, speed mismatches can cause boot failures.

That is why we recommend a five-minute compatibility check before buying anything. It saves returns and frustration. If you are also chasing frame drops, our guide on why a gaming laptop slows down over time pairs well with this check.

The Short Answer: Check Three Things First

Before you buy, verify three facts. Get all three right and the upgrade is straightforward.

• Socketed or soldered. Check the OEM spec sheet or service manual. Look for "SO-DIMM" or "user-upgradeable memory." If it says "onboard" or "soldered," stop here.
• Slot count. One slot means single-channel. Two slots mean you can run dual-channel. Mixed setups are possible but not ideal.
• Max capacity and speed. Note the maximum supported GB and the rated MHz. Exceeding either can cause boot failures.

Here is a quick reference table.

If any check fails, the upgrade may not be worth it. In that case, proven ways to speed up a gaming laptop without new hardware might be the better first step.

How Gaming Laptop RAM Actually Works

RAM is your laptop's short-term workspace. Games load textures, geometry, and audio into it. The more RAM you have, the more the game can keep ready at once.

When RAM fills up, the system spills to the SSD, and performance drops.

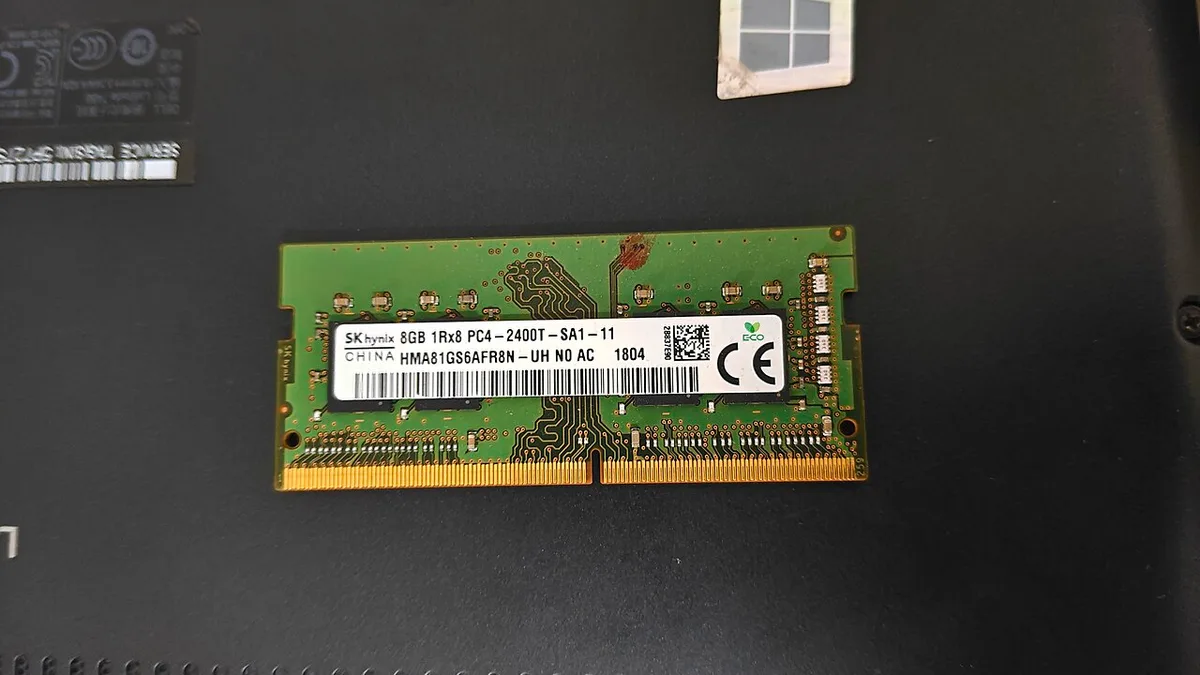

A SO-DIMM module is a small circuit board with memory chips on it. It plugs into a slot on the motherboard. The memory controller inside the CPU manages traffic between RAM and the processor.

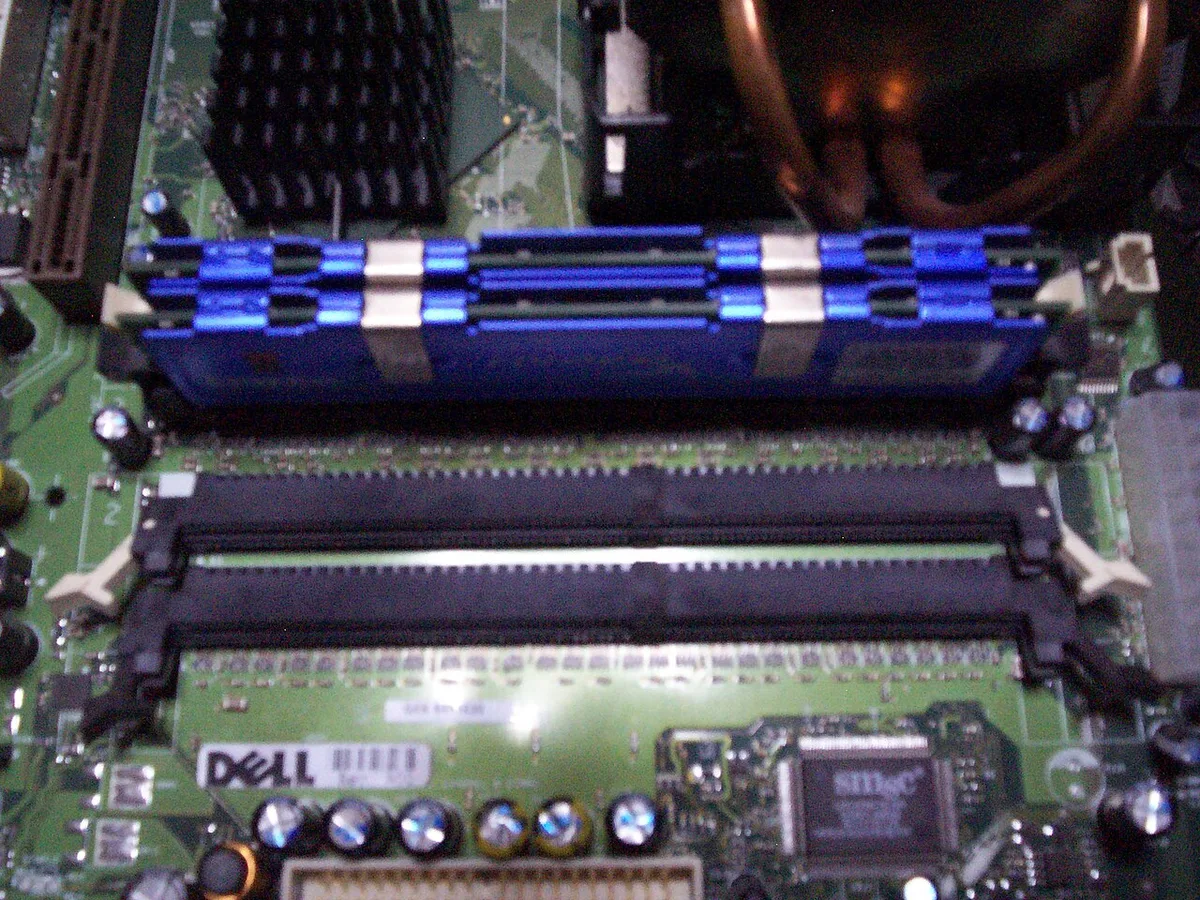

Dual-channel mode is the big performance lever. When two matched modules run together, bandwidth roughly doubles. That reduces stutter in open-world games.

Single-channel setups bottleneck bandwidth, even with the same total capacity.

Speed is measured in MHz. DDR4 gaming laptops usually run 2666 to 3200 MHz. DDR5 models run 4800 to 5600 MHz.

CAS latency, written as CL, measures response time. Lower CL is faster, but speed and capacity matter more for most gamers.

One caveat: XMP and EXPO profiles are rare on laptops. Most gaming laptops run RAM at JEDEC standard speeds. You generally cannot overclock laptop memory the way you can on a desktop.

Check your BIOS, but expect stock speeds.

Memory rank also plays a small role. Dual-rank modules can improve performance slightly in some workloads. For gaming, matching capacity and speed matters more than rank.

Image source: Wikimedia Commons / Raimond Spekking (CC BY-SA)

Specs That Actually Matter: Capacity, Speed, and Channels

Three specs drive the decision. Everything else is noise.

Capacity is the biggest factor for gaming. 8GB is the floor and often causes stutter. 16GB is the sweet spot for most gamers as of 2026. 32GB helps streamers and creators. 64GB is overkill for gaming alone.

Speed matters less than capacity. A jump from 2666 to 3200 MHz helps, but it is not dramatic. Do not chase the highest MHz at the expense of capacity.

Channels matter more than speed. Dual-channel beats single-channel by a wide margin in memory-bound games. If you have one 16GB module, adding a matching second module often beats buying a faster single stick.

Here is how the tiers compare.

Match the generation to your board. DDR4 kits will not work in DDR5 slots. Check your OEM spec sheet before ordering.

Crucial's memory configurator at https://www.crucial.com is a reliable cross-check for compatible kits. To see if the upgrade helped, how to benchmark a gaming laptop for real performance is the next logical step.

Step-by-Step: How to Upgrade Gaming Laptop RAM

Follow these steps in order. Rushing the first three causes most failures.

1. Verify compatibility. Confirm socketed RAM, slot count, max capacity, and speed from the OEM spec sheet.
2. Back up your data. Rare, but a failed boot can corrupt files. Better safe.
3. Power down fully. Shut down, unplug the charger, and remove the battery if it is accessible.
4. Ground yourself. Use an anti-static wrist strap or touch a grounded metal surface.
5. Remove the bottom panel. Unscrew all screws in the correct order. Keep them organized. Watch for hidden screws under rubber feet.
6. Locate the memory slots. They sit near the center or under a metal shield. Remove any shield screws.
7. Release the retention clips. Push them outward gently. The module pops up at an angle.
8. Remove the old module. Pull it out by the edges. Do not touch the gold contacts.
9. Insert the new module. Slide it in at about 30 degrees. Press down until both clips click.
10. Reassemble. Replace the shield, bottom panel, and screws. Torque evenly. Do not overtighten.
11. Boot and verify. Power on. Enter BIOS or check your OS to confirm capacity and speed.

If the laptop does not POST, reseat the module. A half-seated stick is the most common cause. If that fails, test one module at a time.

A faulty stick or slot will show up fast.

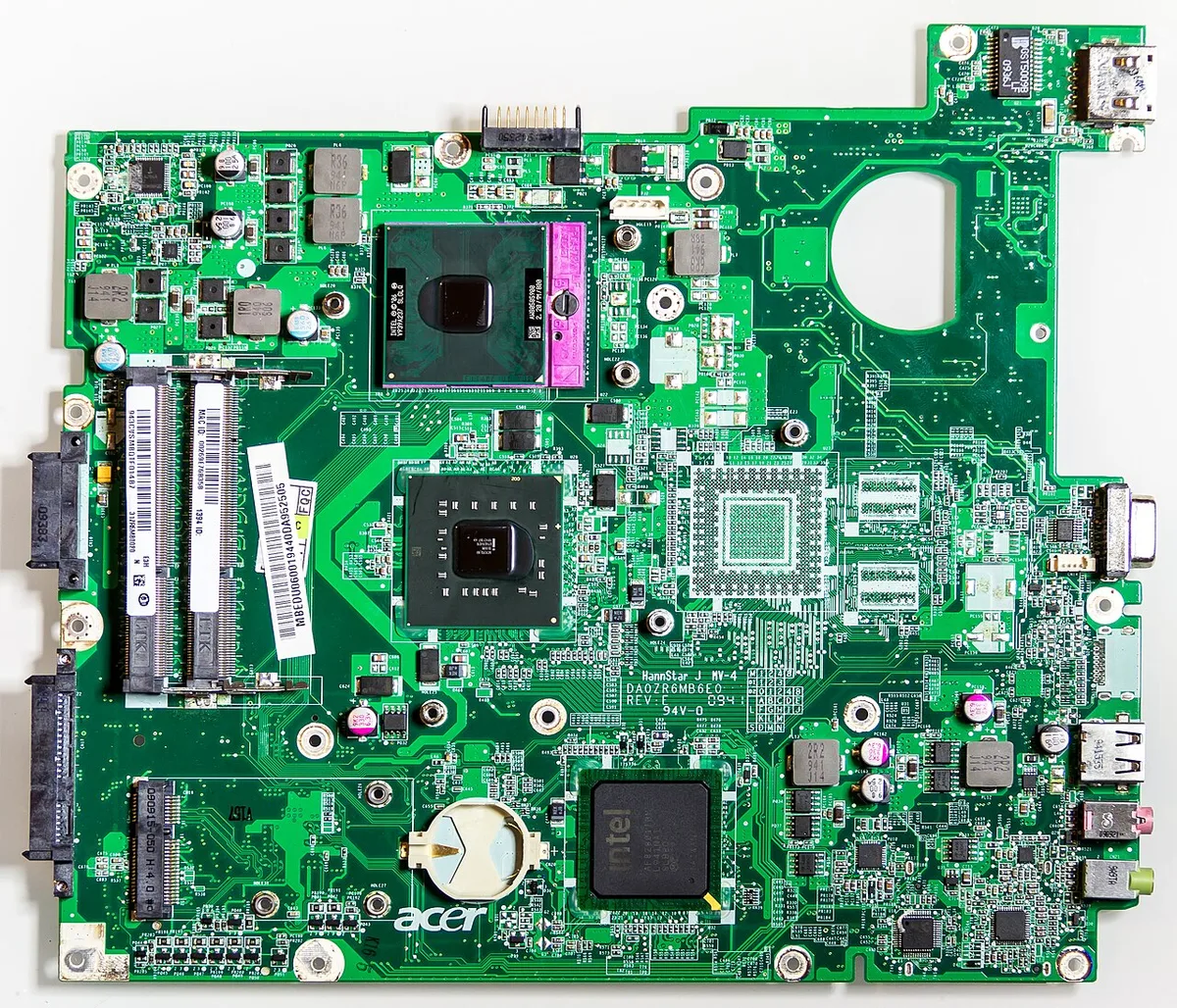

Image source: Wikimedia Commons / Chrihern

DDR4 vs DDR5 and 16GB vs 32GB: Picking the Right Kit

Your board decides the generation. DDR4 and DDR5 are not interchangeable. A DDR4 slot will not accept a DDR5 module, and a DDR5 slot will not run DDR4.

Check the OEM spec sheet before you shop.

DDR4 is still common in older and budget gaming laptops. Speeds usually land at 2666 or 3200 MHz. DDR5 is the current standard on newer machines.

Speeds start at 4800 MHz and run up to 5600 MHz. The jump helps, but capacity matters more for most gamers.

16GB is the right call for most people. It handles modern AAA games, Discord, and a browser without choking. 32GB earns its keep if you stream, edit video, or run heavy mods. 8GB is the floor and often causes stutter in newer titles. 64GB is workstation territory.

Matched kits beat mixed sticks. A 2x8GB or 2x16GB kit runs in dual-channel mode. That roughly doubles bandwidth versus a single module.

If you already own one 16GB stick, adding a matching second stick often beats buying a faster single module.

Here is a quick side-by-side.

If you are unsure which kit fits, Crucial's memory configurator at https://www.crucial.com is a solid cross-check. Intel's official memory support pages at https://www.intel.com are another good reference for supported speeds.

Image source: Wikimedia Commons / Suyash.dwivedi (CC BY-SA)

Common Mistakes That Ruin a RAM Upgrade (and Pro Tips)

Most failures come from skipping checks, not from bad hardware.

• Buying DDR5 for a DDR4 board. Always confirm the generation first.
• Ignoring the OEM max capacity. A 64GB kit will not work on a 32GB-max board.
• Mixing speeds and timings. The system usually downclocks to the slowest module.
• Touching the gold contacts. Oils from skin can cause connection issues.
• Forgetting hidden screws. Many panels hide screws under rubber feet.
• Not seating the module fully. The clip must click on both sides.
• Overtightening screws. Stripped threads are a common repair bill.
• Skipping the POST test. Always verify before closing the chassis fully.

Pro tips that save headaches:

• Photograph the screw layout before you start. It makes reassembly faster.
• Work on a hard, grounded surface. Avoid carpet.
• Keep modules in their anti-static packaging until install.
• If the laptop will not boot, reseat first, then test one stick at a time.
• Update the BIOS only if the OEM recommends it for memory support.

If frame drops persist after the upgrade, our guide on how to fix FPS drops on a gaming laptop covers the next likely culprits. You can also see what really affects FPS on a gaming laptop before chasing more hardware.

What It Costs and What Performance to Expect

RAM is one of the cheapest upgrades with real payoff. As of 2026, expect roughly $25 to $45 for a 16GB DDR4 kit. A 16GB DDR5 kit runs about $40 to $70.

A 32GB DDR5 kit sits around $75 to $120. Prices swing with supply, so check current listings before buying.

Performance gains depend on your starting point. Moving from 8GB to 16GB usually removes stutter and texture pop-in. Moving from single-channel to dual-channel can lift frame rates in memory-bound games by 10 to 30 percent.

The exact number varies by title and CPU.

Do not expect miracles. RAM will not fix a weak GPU or a thermal problem. If your laptop runs hot, how to clean gaming laptop vents safely should come first.

If you are still chasing smooth frames, how to reduce stuttering on a gaming laptop is a good companion read.

Here is a rough expectation table.

Measure before and after. Use a consistent benchmark and note average FPS, 1 percent lows, and stutter. That tells you whether the money was well spent.

Frequently Asked Questions

Can I upgrade RAM on any gaming laptop?

No. Many thin-and-light models use soldered LPDDR4X or LPDDR5X memory. Those chips are permanently attached to the board.

Check the OEM spec sheet for "SO-DIMM" or "user-upgradeable memory" before buying anything.

How do I know if my RAM is soldered?

Look for "onboard" or "soldered" in the memory section of the spec sheet. Service manuals also list slot count. If no slots are listed, the RAM is likely soldered and not upgradeable.

Does more RAM increase FPS?

Sometimes. The biggest gains come from fixing a bottleneck. Moving from 8GB to 16GB or from single-channel to dual-channel usually helps.

Going from 16GB to 32GB rarely improves pure gaming performance.

Will upgrading RAM void my warranty?

It depends on the OEM and region. In the US, the Magnuson-Moss Warranty Act limits blanket voiding for simple upgrades. Still, opening the chassis can risk cosmetic damage claims.

Check your warranty terms first.

How long does the upgrade take?

Plan 15 to 30 minutes for a first-timer. Most of that is removing and replacing screws. The actual module swap takes under a minute once you reach the slots.

Should I upgrade RAM or storage first?

If you have 8GB of RAM, upgrade RAM first. If you already have 16GB and a slow HDD, an SSD upgrade delivers a bigger day-to-day difference. For most gamers, 16GB of RAM plus an SSD is the baseline.

Should You Upgrade the RAM or Replace the Laptop?

Upgrade the RAM if three conditions hold. The memory is socketed. The CPU and GPU still meet your target games.

The laptop is otherwise in good shape. In that case, a $40 to $80 kit can add years of life.

Replace the laptop if the RAM is soldered and insufficient. Same goes if the GPU is too weak for your games or the battery is failing. Spending on RAM will not fix a dead platform.

Think in terms of bottleneck. If games stutter from low memory, RAM helps. If frame rates are low across the board, the GPU or CPU is likely the limit.

For a broader check, how to test gaming laptop performance before buying is a useful framework even if you are not buying yet.

The decision is simple. Check upgradeability first. If it passes, upgrade.

If not, weigh the cost of a new machine against the value of the old one. Either way, you now know exactly what to look for.
